Smart Phone Low Power Oscillator Quartz Electronics 12.000MHZ 5.03.21.25mm

Brand Name : XTY

Model Number : SMD 3.2×2.5

Certification : SGS REACH ISO9001:2008

Place of Origin : China

MOQ : 1

Input Current : 25mA max

Nominal Freq : XTY-12.000MHz

Output level : CMOS

Operating Temperature Range : -20℃ ~ +70℃

Supply Voltage : 3.3V

Price : 0.03~0.22

Packaging Details : 3000pcs/tape.

Delivery Time : 7days

Payment Terms : T/T

Supply Ability : 1 week

Contact Now

Quartz Crystal Oscillator 12.000MHZ 5.0*3.2*1.25mm For Smart Phone

product application

Smart grid (smart meter infrastructure, smart meters, automatic meter reading)
Server / data center

product features

Broad frequency range from 1.544Mhz to 125MHz
Compact and thin ceramic package with metalized surface mounting and automatically loaded
Reflow solder is possible
Lower noise and current with reduced power consumption

Product specification

Type		SMD5.0*3.2
Frequency Range(MHz)		1MHZ to 128MHz
Frequency Tolerance(at25℃)		±10PPm ,±20PPm at25℃+/-2℃
Supply Voltage		3.3V
Frequency Stability vs. Temp(FL-T)		±10PPm,±20PPm ,±30PPm
Operating Temperature range		-20~+70℃ or -40~+85℃
Storage Temperature range		-45~+80℃
Temperature Characteristics		30PPm at-40~+85℃
Load Capacitance		15 Pf or Serles
Aging		±1 PPm/year
Insulation Resistance		500MΩ(DC100V±15V)

product advantage

The new Tianyuan in R & D, design, manufacturing, marketing and service as a whole, have a hundred grade purification workshop. The international advanced automated production lines, special test equipment, the latest technology and professional and technical personnel; has been preparing for the new Tianyuan own industrial park, to further expand the research and production of the higher requirements of the product.

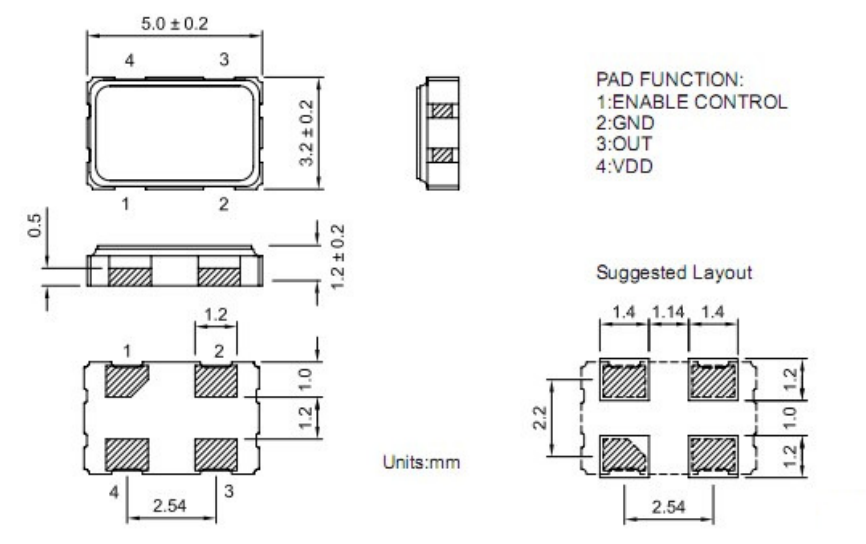

Dimension

Smart Phone Low Power Oscillator Quartz Electronics 12.000MHZ 5.0*3.2*1.25mm

Refluence examination

Frequency change:≤±5ppm

Test Circuit

Smart Phone Low Power Oscillator Quartz Electronics 12.000MHZ 5.0*3.2*1.25mm

Discharge Waveform

Smart Phone Low Power Oscillator Quartz Electronics 12.000MHZ 5.0*3.2*1.25mm

FAQ

Packing

1000pcs/tape.

Samples and technical support can be provided free of charge.
