BOE 5 Inch TFT LCD Display Module For Mobile Handheld Devices High Resolution

SHENZHEN XINTIANYUAN ELECTRONICS CO.,LTD
Contact Now

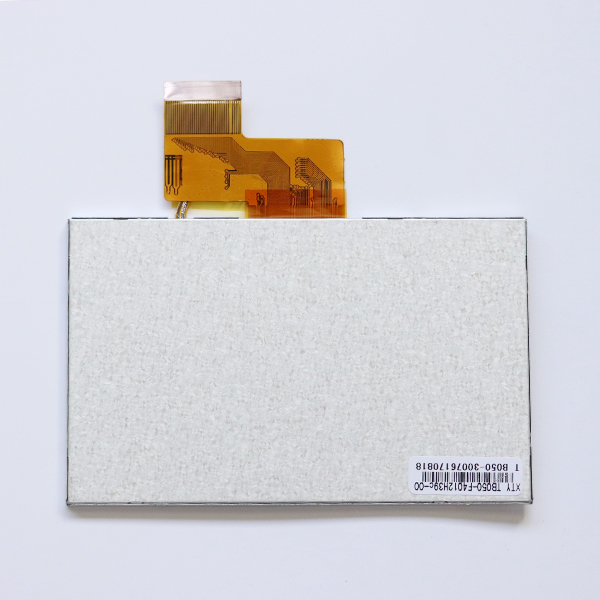

BOE 5 Inch TFT LCD Display Module For Mobile Handheld Devices High Resolution

  • 1
  • 2

Brand Name : XTY

Model Number : 5 " BOE 40PIN

Certification : SGS REACH ISO9001:2008

Place of Origin : China

MOQ : 1

Payment Terms : 0.03

Product model : TB050-F4012N49c-00

Rasolution : 480RGB(H)×272(V)mm

Operation Temperature : -20℃~+70℃

Storage Temperature : -30~+80℃

Interface : TTL 40Pin

Price : 0.03~0.1

Packaging Details : 200pcs/bag

Delivery Time : 7days

Supply Ability : 5.05

Contact Now

China Manufacturer TFT LCD Display Module Type 5 inch BOE



Product Application



Interface

Vehicle display

Mobile handheld devices



product features



LCD size 5.0 inch(Diagonal)
Outline dimensions    120.9×75.95×2.9(Typ)mm
Rasolution    480RGB(H)×272(V)mm
Active area     110.8(H)×62.82(V)mm
Pixel pitch   0.077(H)×0.231(V)mm
Interface     TTL 40Pin
Rubbing direction   6 o'clock
Operation Temperature    -20℃~+70℃
Storage Temperature  -30℃~+80℃
Supply voltage of backlight   18.6V~19.8V
Current for backlight      40~45mA
Luminancel (on the module surface,BM-7)    500~550cd/㎡



Product Advantage



1. Our products are all original and new from manufacturer. It must be work if the model number is correct.

2. We have advanced testing equipments
3. Get the international standard management sysem ISO9001,RoHS
4. All products before sending client,we make 72 hours aging test
5. We have 180days warranty
6. During the guarantee period, if the items you purchased from our store are out of perfected quality, pls notify us within 3 days after delivery, we will return the new products when we got your message.


Selling point:
1) prompt delivery
2) variety of packing:bulk and carton
3) stable performance,extensive resistance
4) factory direct price
5) none forbidden
6) all materials&machines importer

                                   BOE 5 Inch TFT LCD Display Module For Mobile Handheld Devices High Resolution
