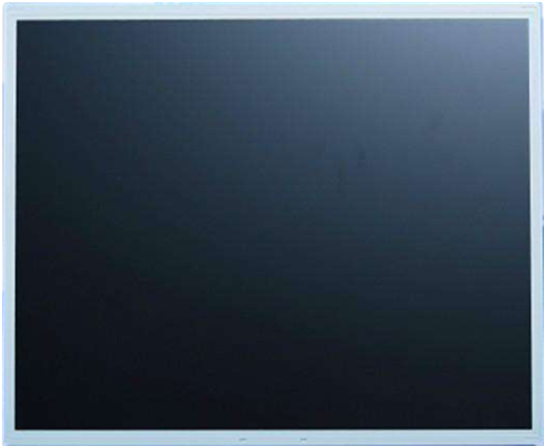

15.6 Inch TFT LCD Display Module Panel Grade A Super Slim LCD Screen

Brand Name : XTY

Model Number : 15.6 inch BOE

Certification : SGS REACH ISO9001:2008

Place of Origin : China

MOQ : 1

Price : 45

Payment Terms : 0.03, T/T

Supply Ability : 5.05

Delivery Time : 7days

Packaging Details : 200pcs/bag

LCD size : 15.6 inch

Active area : 344.16(H)*193.59(V)

Display colors : 6bit + Hi-FRC

Pixel pitch : 017925(H) * 0.17925(V)

Operation Temperature : -20℃～+70℃

Display mode : Normally White

Pixel arrangement : RGB Vertical stripe

Contact Now

15.6 inch LCD for POS machine Bank counter and PC

Product features

LCD size	15.6 inch
Dimensional Outline	359.59(H)206.5(V)3.2 (D:max)mm
Rasolution	1920RGB(H)×1080(V)mm
Active area	344.16(H)×193.59(V)mm
Pixel pitch	0.17925(H)×0.17925(V)mm
Interface	TTL 40Pin 60Pin
Rubbing direction	6 o'clock
Operation Temperature	-20℃～+70℃
Storage Temperature	-30℃～+80℃
Supply voltage of backlight	18.6V～19.8V
Weight	370(max)
Surface treatment	Anti Glare

Features

Origin: Shenzhen
Color: color
Category:BOE module
Model: 15.6 inch

Process customization: Yes

Product Application

Car rear view mirror

The man-machine interface

Car mirrors

Selling point:

Well and high quality control
Prompt delivery
Small order acceptable
Perfect craft procedure
Sample Time:3-7days,5-10 pcs for free.
If charge you mold and sample fees, will be refundable after confirm order at a certain quantity

Product Advantage

1. Our products are all original and new from manufacturer. It must be work if the model number is correct.

2. We have advanced testing equipments
3. Get the international standard management sysem ISO9001,RoHS
4. All products before sending client,we make 72 hours aging test
5. We have 180days warranty
6. During the guarantee period, if the items you purchased from our store are out of perfected quality, pls notify us within 3 days after delivery, we will return the new products when we got your message.

15.6 Inch TFT LCD Display Module Panel Grade A Super Slim LCD Screen
